ROV Services

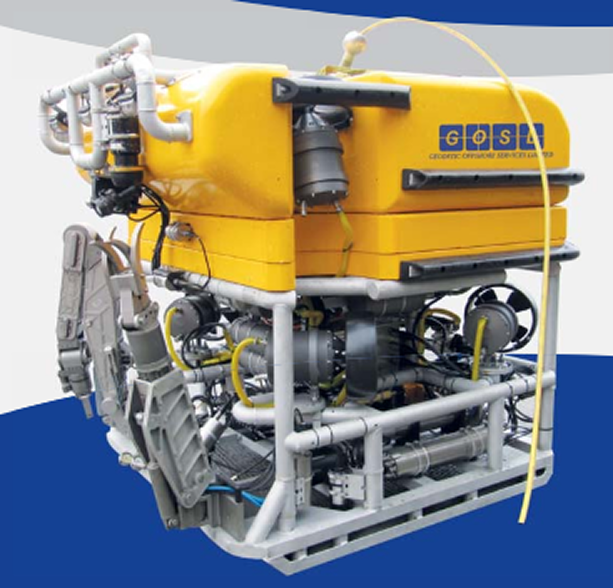

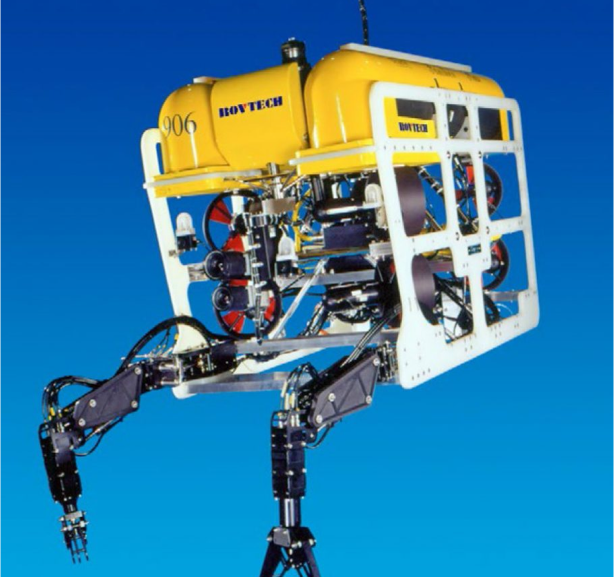

The Panther Plus Light Work Class ROV is a development of the highly successful Panther ROV. The Panther Plus has increased power, payload and dual manipulator capability constituting a true work class ROV. The Panther Plus has 8 horizontal thrusters giving a forward thrust of 220kg and market leading handling abilities.

The Panther Plus LWROVs have performed beyond all expectations in general drill support, completions, workovers, pipeline survey, platform survey, light construction support, cable lay & plough support.

The Panther Plus LWROVs are all deployed in a side entry garage Tether Management System (TMS) and, in their standard configurations are launched using a dedicated Crane Launch and Recovery Skid.

FEATURES

• Drawing power source and controlled from surface unit located in A60 surface container.
• Integrated with HLK-HD5 manipulator arm.
• Multimode fiber optic system.
• Tether Management System (TMS)
• Launch and Recovery Systems (LARS)

SPECIFICATIONS

• Vehicle Dimensions
• Length: 1.75m
• Height: 1.22m
• Width: 1.06m
• Weight: 500kg
• Through-frame Lift Payload: 45kg
• Fore/Aft: 220 kg
• Lateral: 170 kg
• Vertical: 80 kg
• Speed Fore/Aft: 3.5 knots
• Lateral: 2.8 knots
• Propulsion: 16Kw
• Tooling: 9Kw

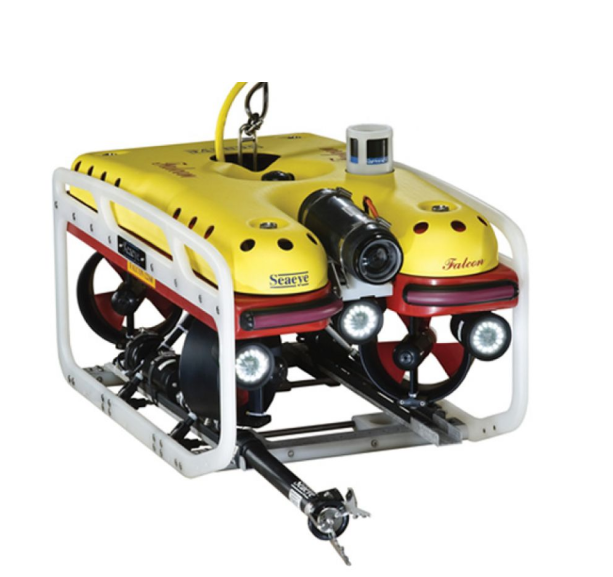

The Seaeye Falcon ROV is widely considered the leading observation and inspection vehicle within the oil and gas industry. Open frame construction and a 37kg payload capacity allow a wide range of tools and sensors to be carried as well as underslung & bolt-on tool skids. The large frame ensures efficient water flow through the vehicle’s vectored and vertical thrusters allowing it to perform well even in strong current and harsh conditions.

The rugged chassis and stainless-steel lift frames are totally maintenance free. The launch and recovery system is gravity based for platform and jack-up operations up to 300msw depth. This enables the ROV to be deployed without needing a welding/hot-work permit, reducing safety risks and time to mobilise/demobilise.

FEATURES

• Water depth rating of up to 700msw with a payload of 37kg
• Brushless DC thrusters with velocity feedback
• High resolution color camera that can be tilted 90 degrees

SPECIFICATIONS

• Depth Rating: 1000m
• Power: 15kW 380/480VAC 3-phase
• Length: 1000mm
• Height: 545mm
• Width: 600mm
• Thrust Forward: 48kg
• Thrust Lateral : 28kg
• Thrust Vertical: 39kg
• Payload: 12kg

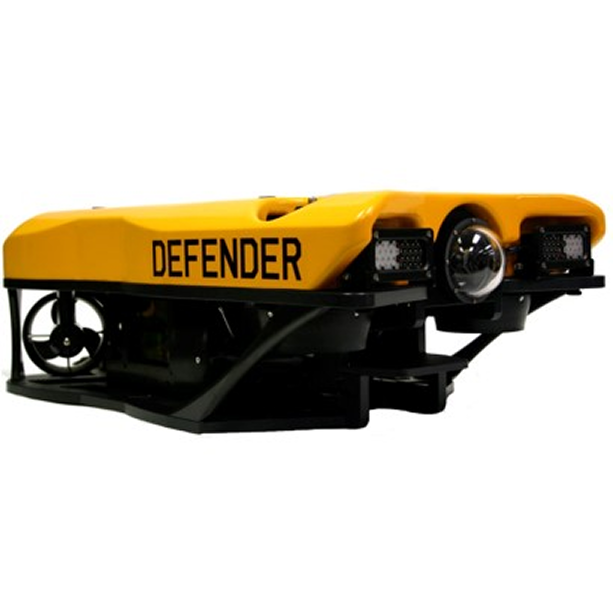

The VideoRay Mission Specialist Defender ROV is a system which utilizes interchangeable, modular components residing on a single, intelligent network. This topology provides an extremely flexible and customizable platform which can be easily adapted to target specific missions.

It is the flexibility of the VideoRay Mission Specialist Defender ROV which sets it apart from current technology in the Remotely Operated Vehicle Industry.

SYSTEM INFORMATION

Power Requirements: 110/220VAC (1 to 2.6kW)
Total System Weight (Sub and OCC): 32.5 kg (71.6 lbs)
Cases: 2 Watertight Rugged Hard Cases
Owner’s Manual: Online Digital
System Tool Kit: Basic Tool Kit
Communications Protocol: RS-485 and Ethernet
Warranty: 2 Year Limited
